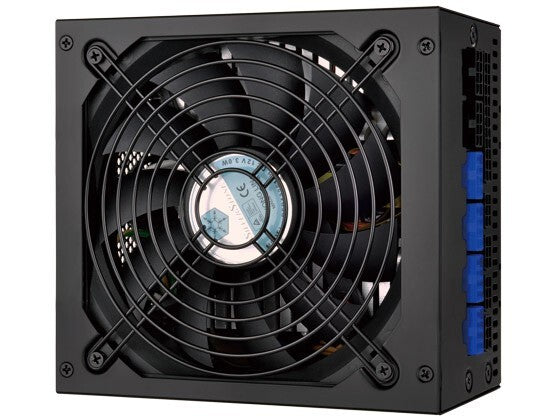

ST60F-P 600W SilverStone Strider Plus 80 Plus Bronze Modular Power Supply
ST60F-P 600W SilverStone Strider Plus 80 Plus Bronze Modular Power Supply
Regular price
$94.95 USD
Regular price
$0.00 USD
Sale price
$94.95 USD
Shipping calculated at checkout.
✓ Certified Open-Box · Tested
Quantity
Couldn't load pickup availability
Fast shippingShips in 1–2 business days from Arizona
30-day returnsEasy returns, refund to original payment
Tested & guaranteedEvery item inspected before it ships
Secure checkoutPayPal, Venmo & all major cards

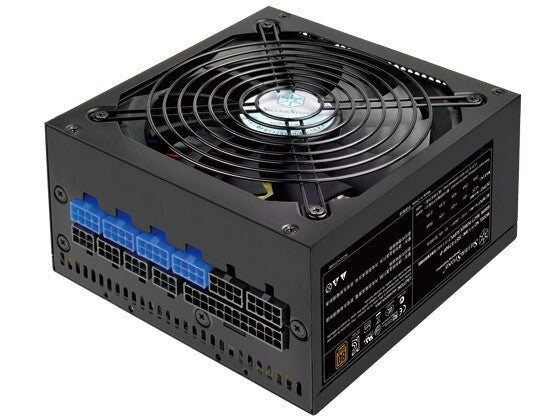

SilverStone ST60F-P Strider Plus 600W 80 Plus Bronze Modular Power Supply PSU
- 600W 24hour continuous power output with 40℃operating temperature
- 100% modular cables
- Efficiency 82%~85% at 20%~100% loading
- Class-leading single +12V rail with 42A
- Strict ±3% voltage regulation

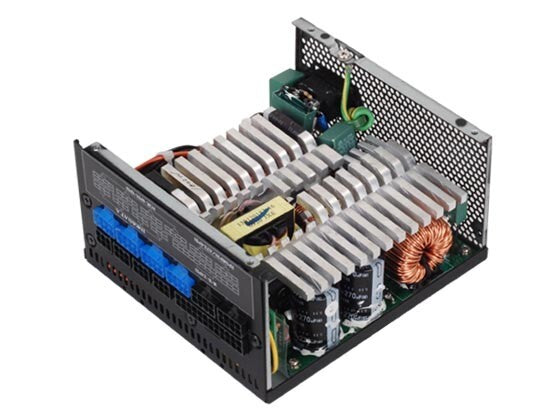

- Japanese main capacitors
- Silent running 135mm fan with 19dBA minimum
- Dual EPS 8pin connectors support
- Single PCI-E 8pin and four PCI-E 6pin connectors support
- Supports ATX 12V 2.3 & EPS 12V
- Active PFC
Product No.
SST-ST60F-P
Color
Black（Lead-Free Paint）
Max. DC Output
600W
Power density
291W per liter
Load Range

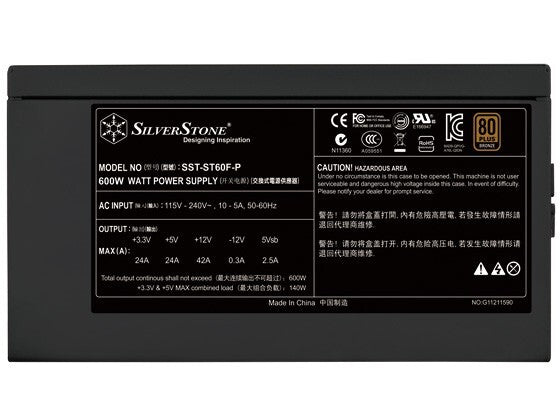

| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 24A | 24A | 42A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.5A |
| Min.(Amps) | 0.1A | 0.2A | 0.6A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
140W
Combined +12V
504W/42A
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.95 at full load）
Efficiency
82%~85% at 20% ~ 100% loading
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Short circuit protection
Over power protection
Over voltage protection
Under voltage protection
Short circuit protection

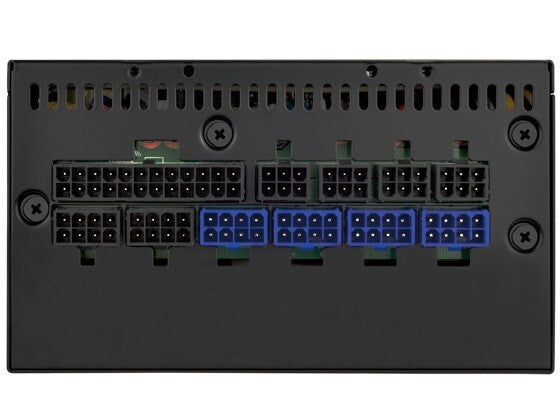

Connectors

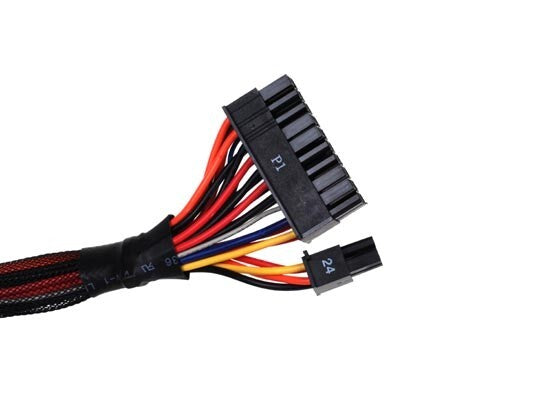

1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）

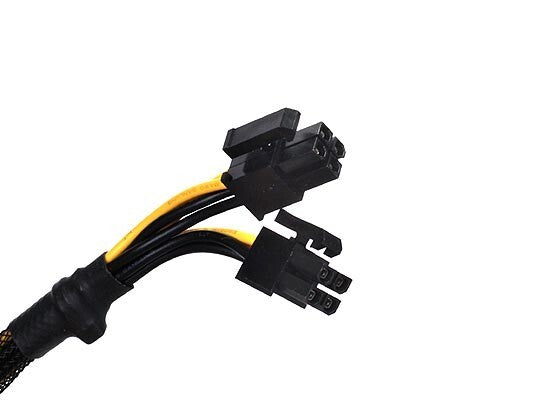

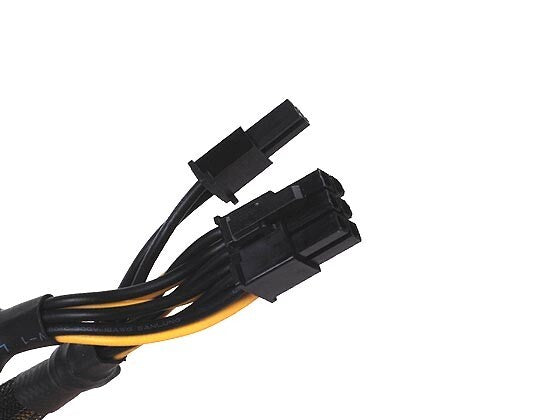

1 x 8/6-Pin PCIE connector（550mm）
3 x 6-Pin PCIE connector（550mm）
6 x SATA connector（500mm / 250mm / 250mm）

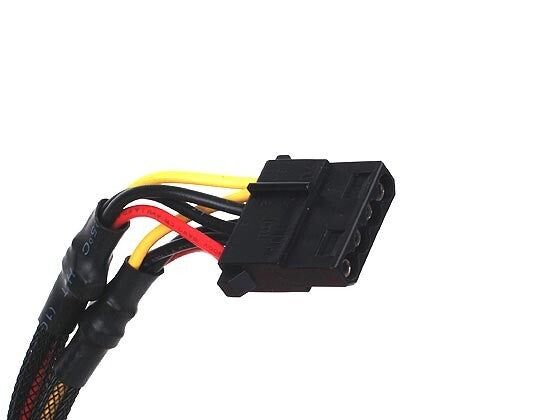

6 x 4-Pin Peripheral connector （500mm / 250mm / 250mm）
2 x 4-Pin Floppy connector（500mm / 250mm / 250mm / 150mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）
1 x 8/6-Pin PCIE connector（550mm）
3 x 6-Pin PCIE connector（550mm）
6 x SATA connector（500mm / 250mm / 250mm）
6 x 4-Pin Peripheral connector （500mm / 250mm / 250mm）
2 x 4-Pin Floppy connector（500mm / 250mm / 250mm / 150mm）
Cooling System

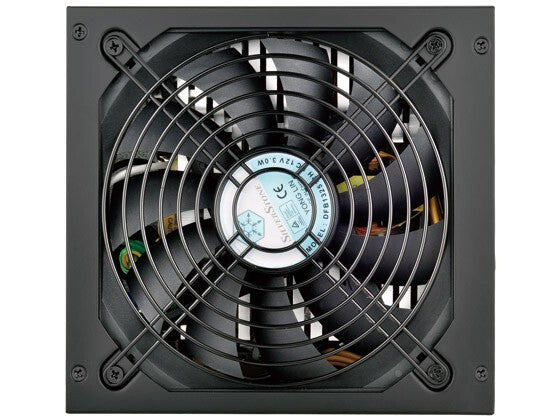

Silent 135mm fan
Noise Level
19dBA-32dBA
Certification
80 PLUS Bronze
Form factor
ATX12V / EPS12V
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
Weight
2.7 kg
Other
Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
