Progressive Cavity Screw Pump Single Rotor Industrial Pump
Progressive Cavity Screw Pump Single Rotor Industrial Pump
Regular price
$1,995.75 USD
Regular price
$0.00 USD
Sale price
$1,995.75 USD
Shipping calculated at checkout.
✓ Certified Open-Box · Tested
Quantity
Couldn't load pickup availability
Fast shippingShips in 1–2 business days from Arizona
30-day returnsEasy returns, refund to original payment
Tested & guaranteedEvery item inspected before it ships
Secure checkoutPayPal, Venmo & all major cards

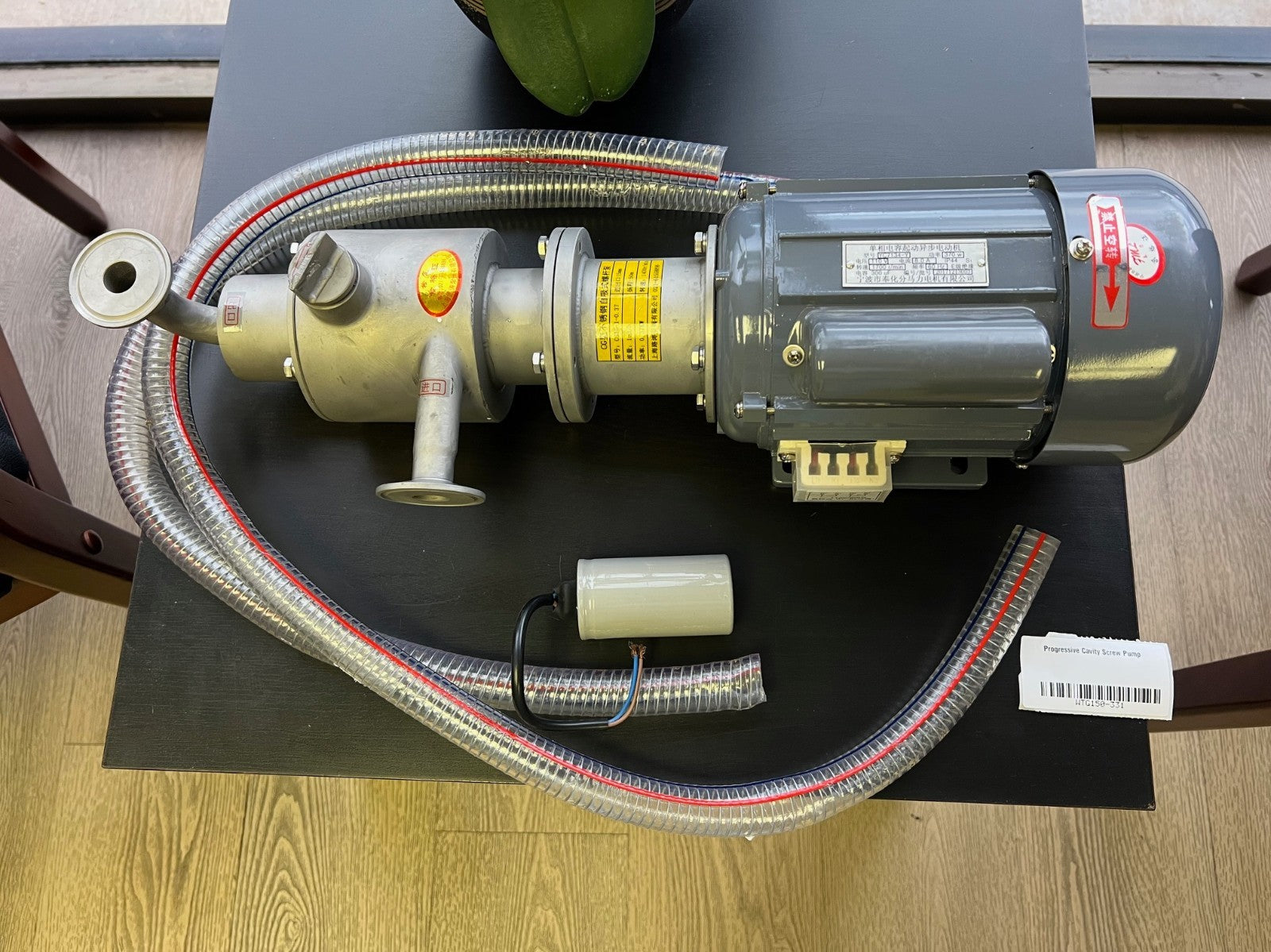

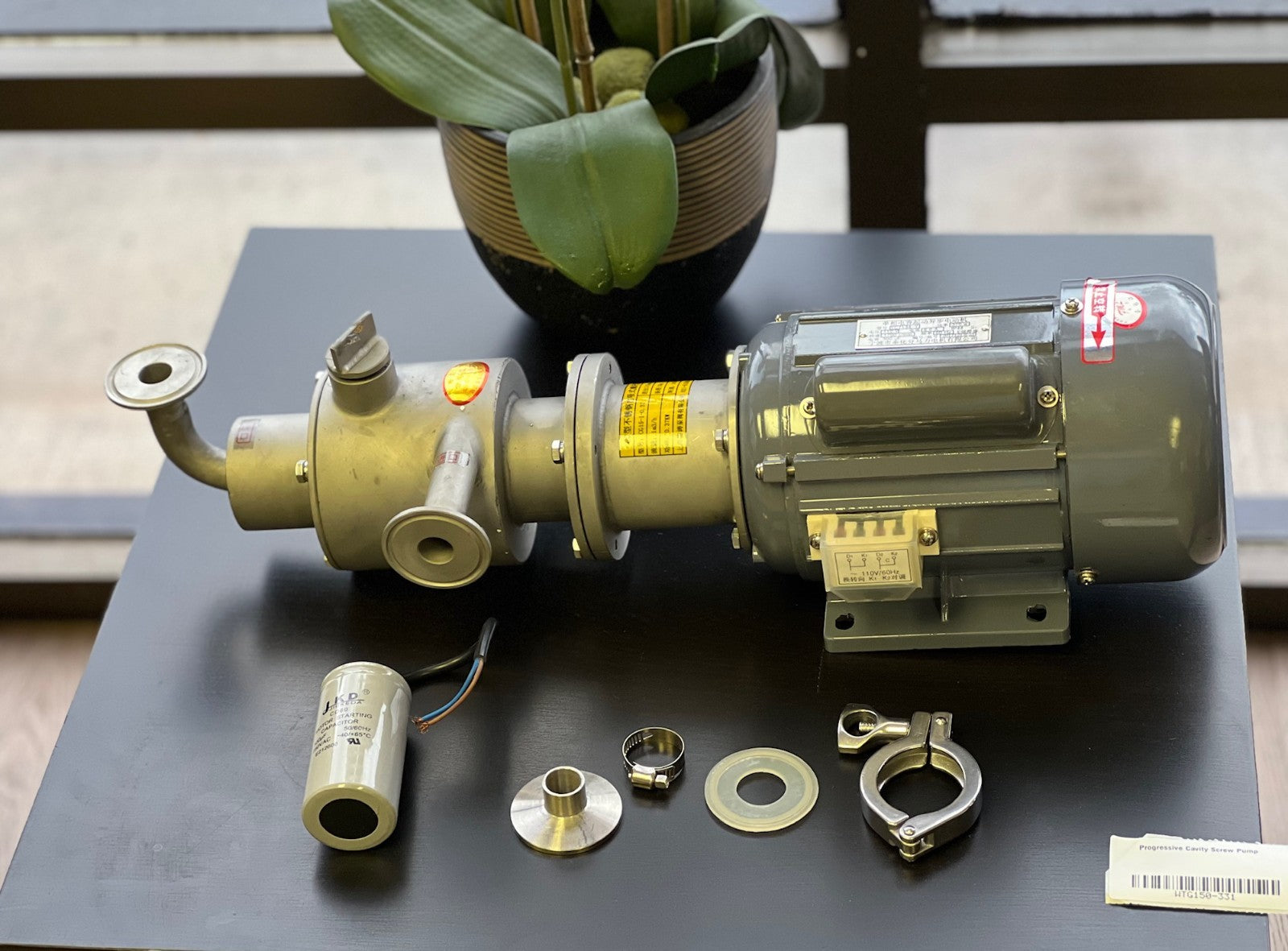

Progressive Cavity Screw Pump
The unit shown is a stainless steel self-priming progressive cavity screw pump (also called a single screw pump or helical rotor pump).
This type of pump is a positive displacement pump designed to transfer fluids smoothly and continuously with low pulsation. It uses a rotating helical rotor inside a stator to move liquid forward at a controlled rate.
Progressive cavity pumps are commonly used for:
Chemical processing
Food and beverage transfer
Wastewater and slurry handling
Oil and viscous fluids
Industrial dosing and metering applications
These pumps are especially suitable for viscous liquids or fluids containing solids because they provide gentle and stable flow.

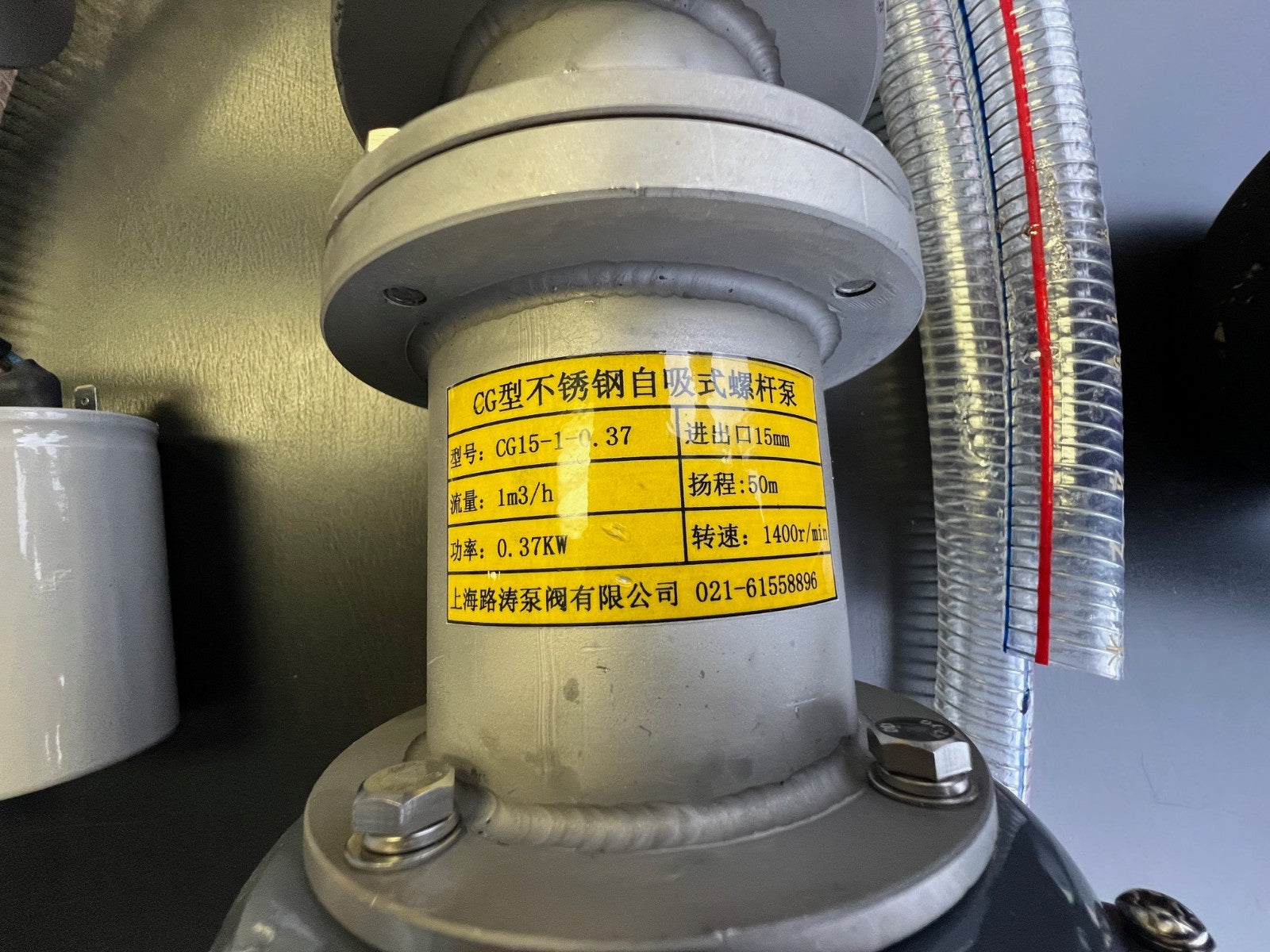

Model: CG15-1-0.37
Pump Type: Self-priming stainless steel progressive cavity screw pump

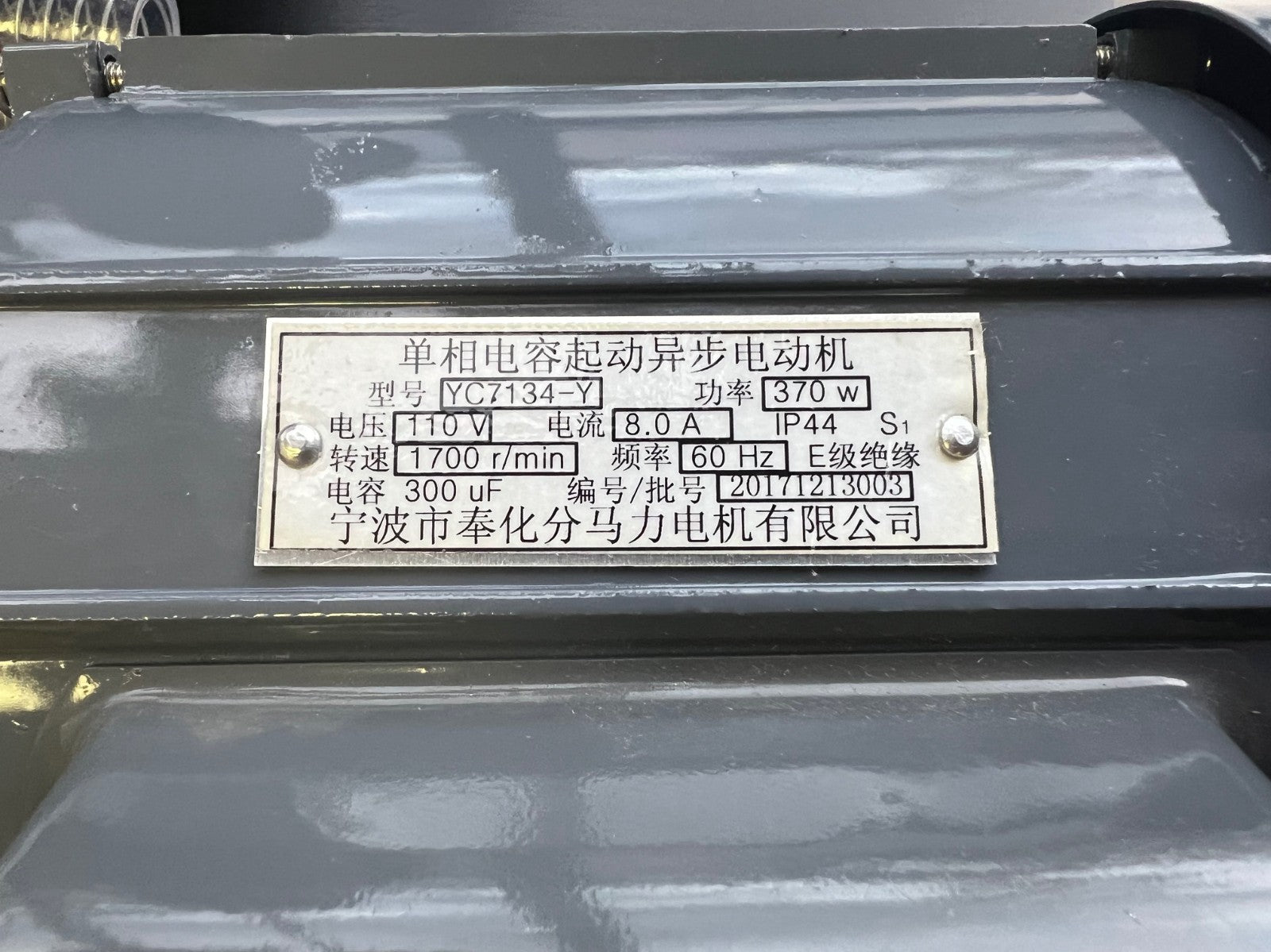

Power: 0.37 kW (~0.5 HP)
Flow Rate: approx. 1 m³/h (1000 L/hour)
Head (Max Pressure Lift): approx. 50 meters
Rotation Speed: approx. 1400 RPM
Inlet/Outlet Size: 15 mm
Construction Material: Stainless steel (corrosion resistant)
