CKL KVM Switch Dual Monitor DisplayPort 2 Port 4K 60Hz 444 2x2 DP Switch

Name: CKL KVM Switch Dual Monitor DisplayPort 2 Port 4K 60Hz 444 2x2 DP Switch
Brand: CKL
SKU: WTG65-67
Price: 104.97 USD
Availability: InStock

$104.97 USD

~~$149.95 USD~~ $104.97 USD

Sale Sold out

Shipping calculated at checkout.

✓ Brand New

Fast shippingShips in 1–2 business days from Arizona

30-day returnsEasy returns, refund to original payment

Tested & guaranteedEvery item inspected before it ships

Secure checkoutPayPal, Venmo & all major cards

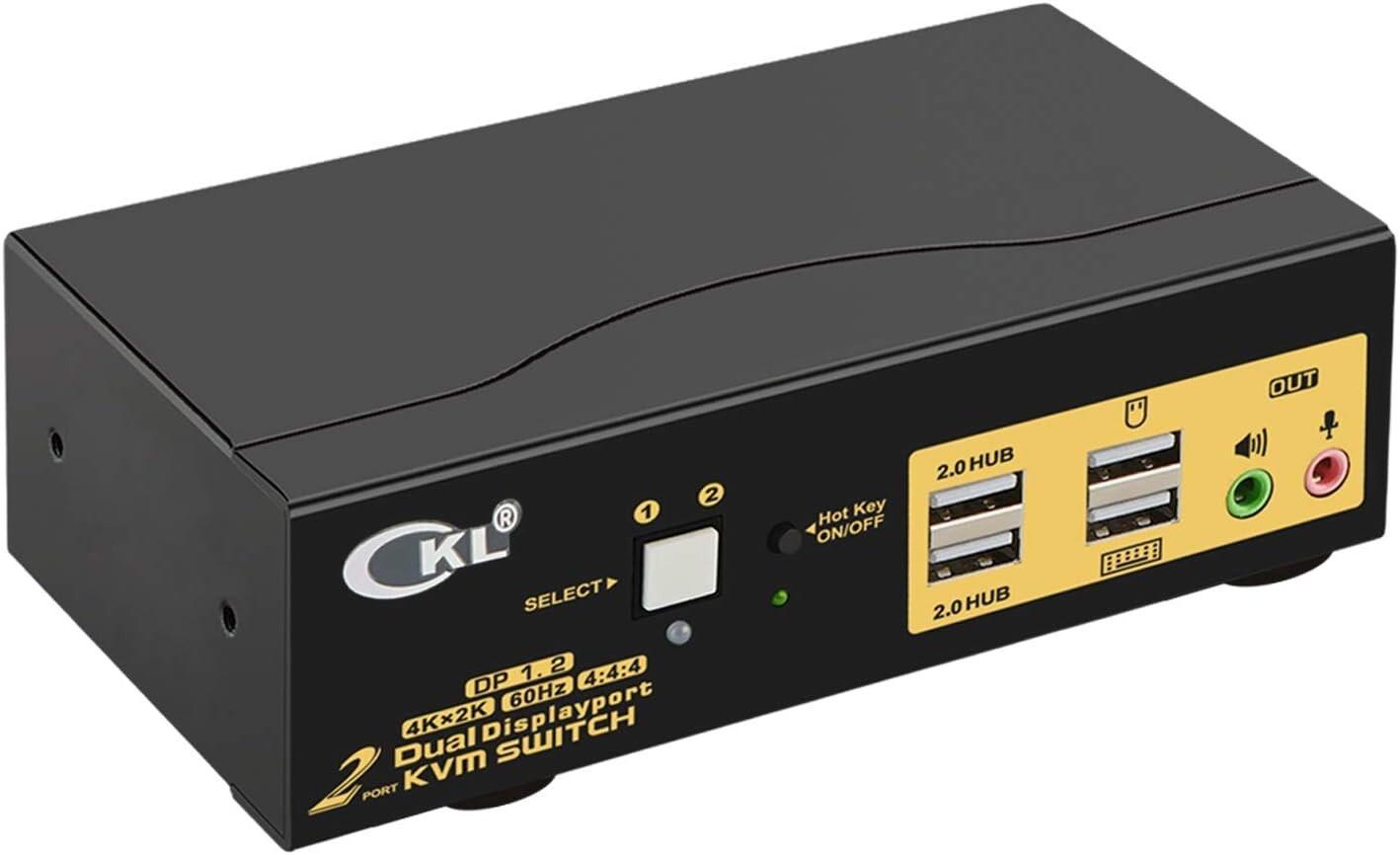

CKL KVM Switch Dual Monitor DisplayPort 2 Port 4K 60Hz 4:4:4, 2x2 DP KVM Switch with Audio and USB 2.0 HUBs (CKL-622DP)

Operation Mode	Toggle
Connector Type	USB 2.0
Brand	CKL
Item dimensions L x W x H	5.1 x 3 x 2 inches
Actuator Type	Toggle
International Protection Rating	IP54
Specification Met	Non Dp
Connectivity Protocol	USB
Color	Dual DP KVM 2 Port 4K 60Hz
Wattage	5 watts

DUAL MONITOR KVM SWITCH DISPLAYPORT 2 IN 2 OUT: Controls 2 Dual DP interfaced computers or laptops from one set of USB or wireless keyboard, mouse and 2 Display Port monitors for extended or mirrored display. Docking station or reliable adapters is needed for Non-DP video in/out, please be aware of this before ordering.

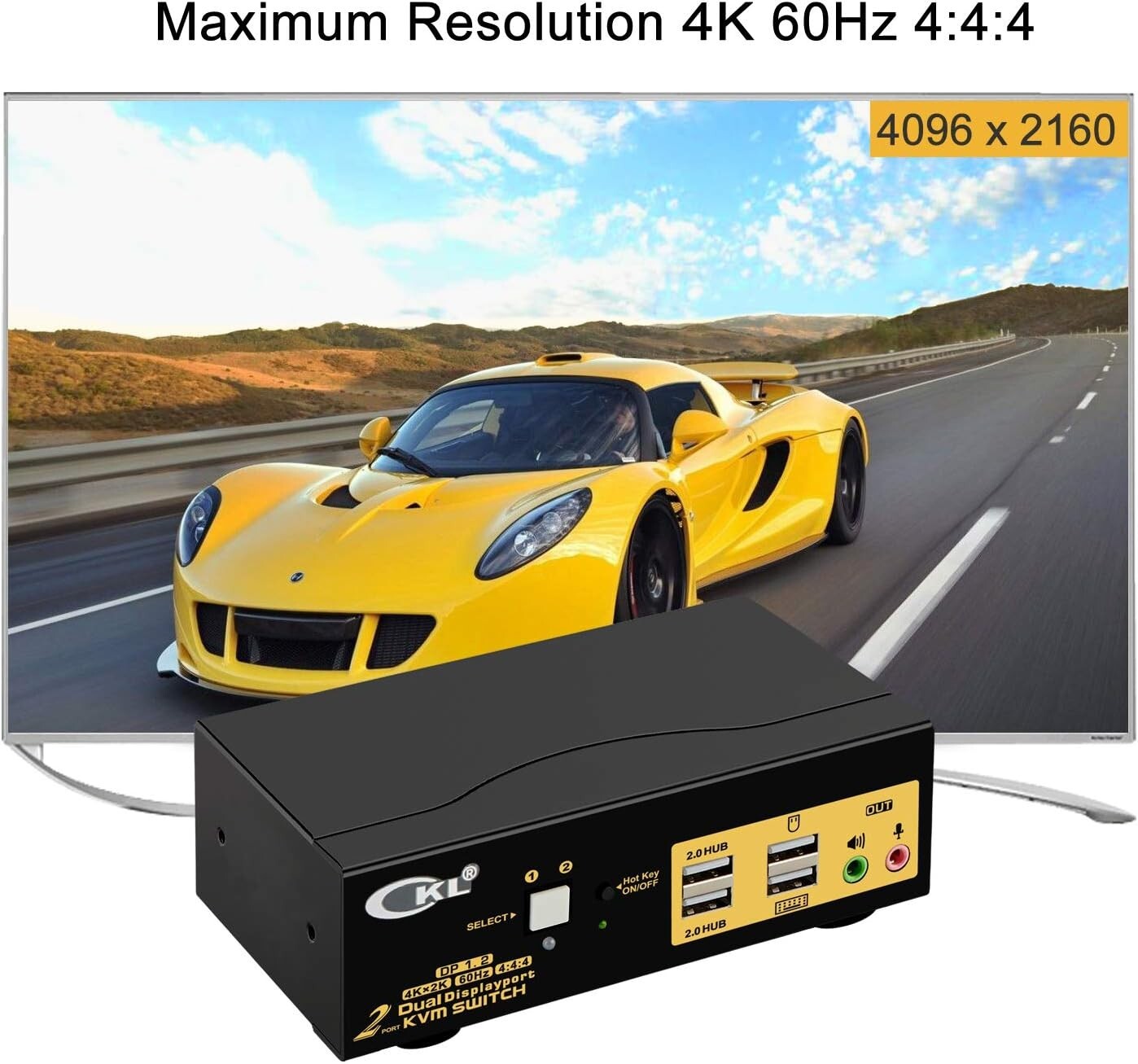

DP KVM SWITCH FOR ULTRA HIGH 4K RESOLUTION: Supports max resolution up to 4096x2160@60Hz 4:4:4, compatible with 3840x2160@60hz, 1080P, 1080P 3D, 1080I, 720P, 576P, 576I, 480P, 480I. Supports HDCP 2.2, HDR10. 16:9 widescreen and 21:9 ultra-wide monitors.
EASY SETUP & EASY SWITCH : Comes with all cables needed except cable for monitors, allows you to switch between home desktop, work laptop and gaming machines using keyboard hotkey, mouse click, front toggle button and wired remoter for different scenarios, also with auto scan function for monitoring multiple computers / DVR / NVR.

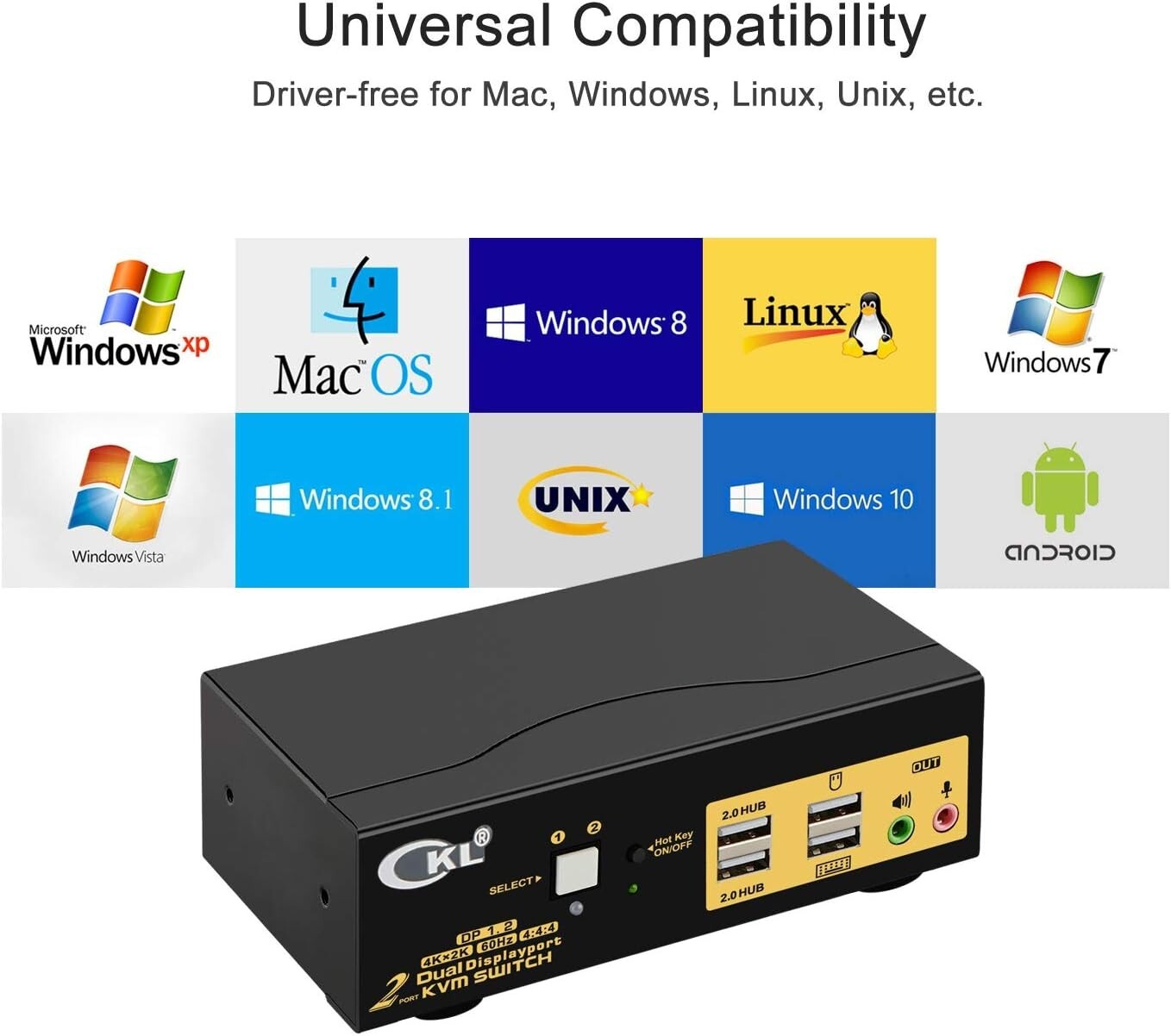

CROSS SUPPORT MOST MAJOR OPERATION SYSTEMS: Compatible with Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian and Ubuntu. Plug and Play without any software needed.
WITH AUDIO, MIC. OUTPUT AND EXTRA 2 USB 2.0 HUBS: Supports separate audio and microphone output, and 2 USB 2.0 HUBs for connecting different USB peripherals like webcam, headset, flash drives, printers and scanners for easy editing between different computers.

2 Port Dual Monitor KVM Switch Display Port CKL-622DP

Product Benefits You Might be Looking for:

1. Control 2 computers or laptops with one set of keyboard, mouse and 2 monitors.

2. With 2 monitors output for extended, duplicated and spiced display purposes.

3. Support up to 4K@60Hz (4096*2160 4:4:4).

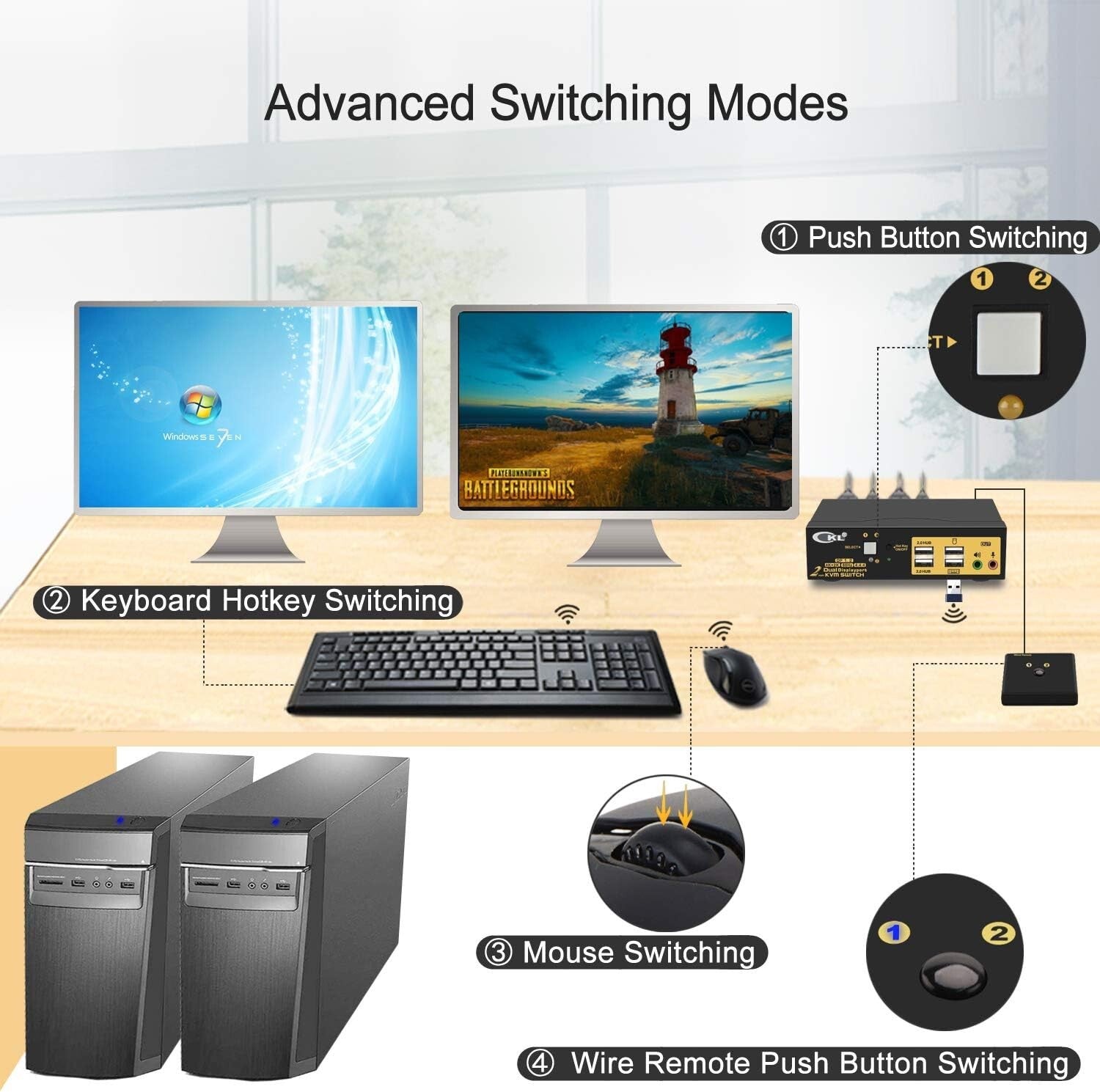

4. Multiple Switching Modes: 1. keyboard hotkey 2. mouse click 3. manual button 4. wired remote 5. auto scan.

5. Cross support multi platforms including Windows 10/7/2000/XP/Vista, Linux, Mac and More.

6. Support most wired and wireless keyboard and mouse.

7. With extra 2 USB 2.0 HUB ports and audio support.

8. Fast shipping and efficient support.

Switching Freely between Home, Work and Gaming PCs

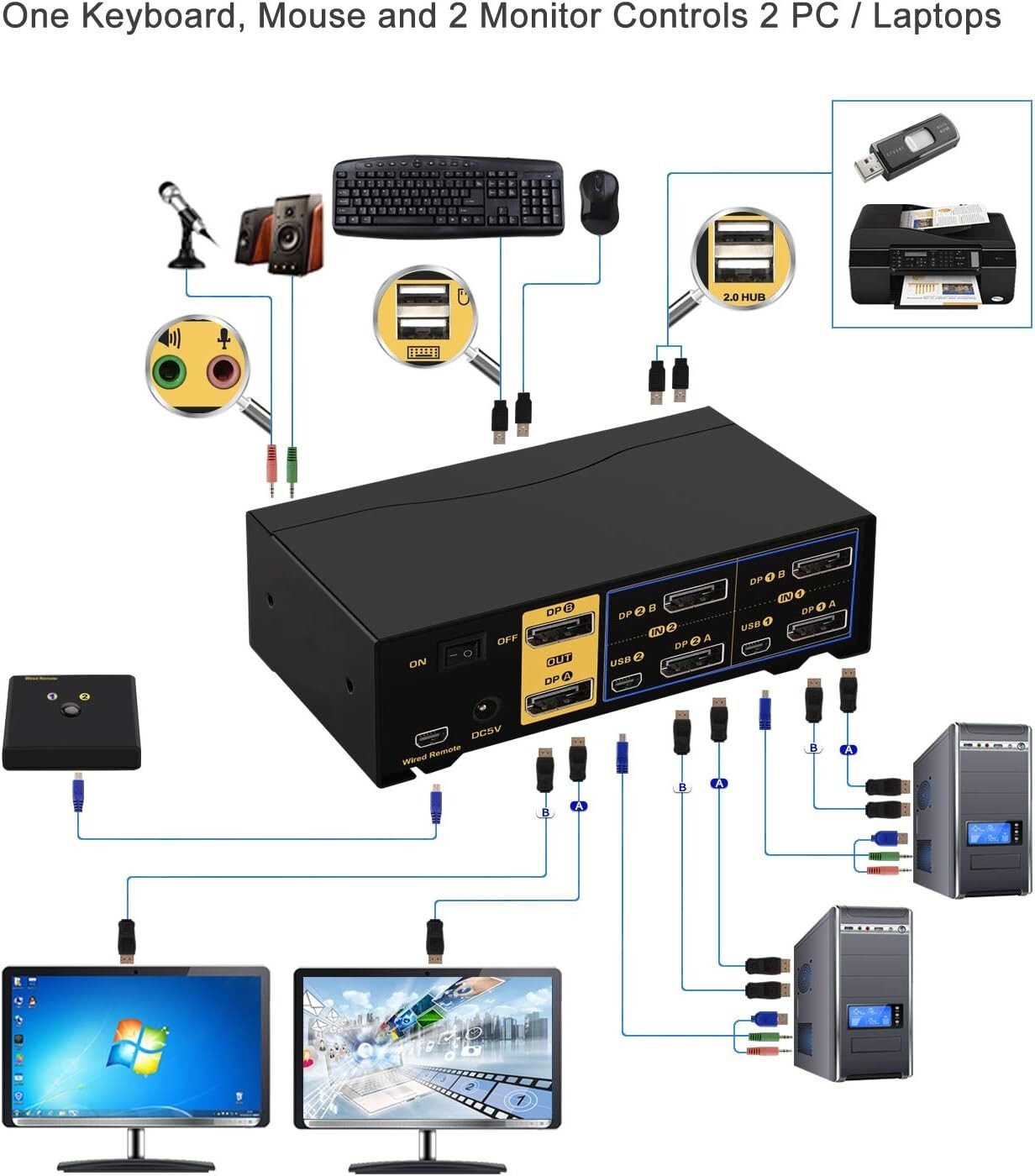

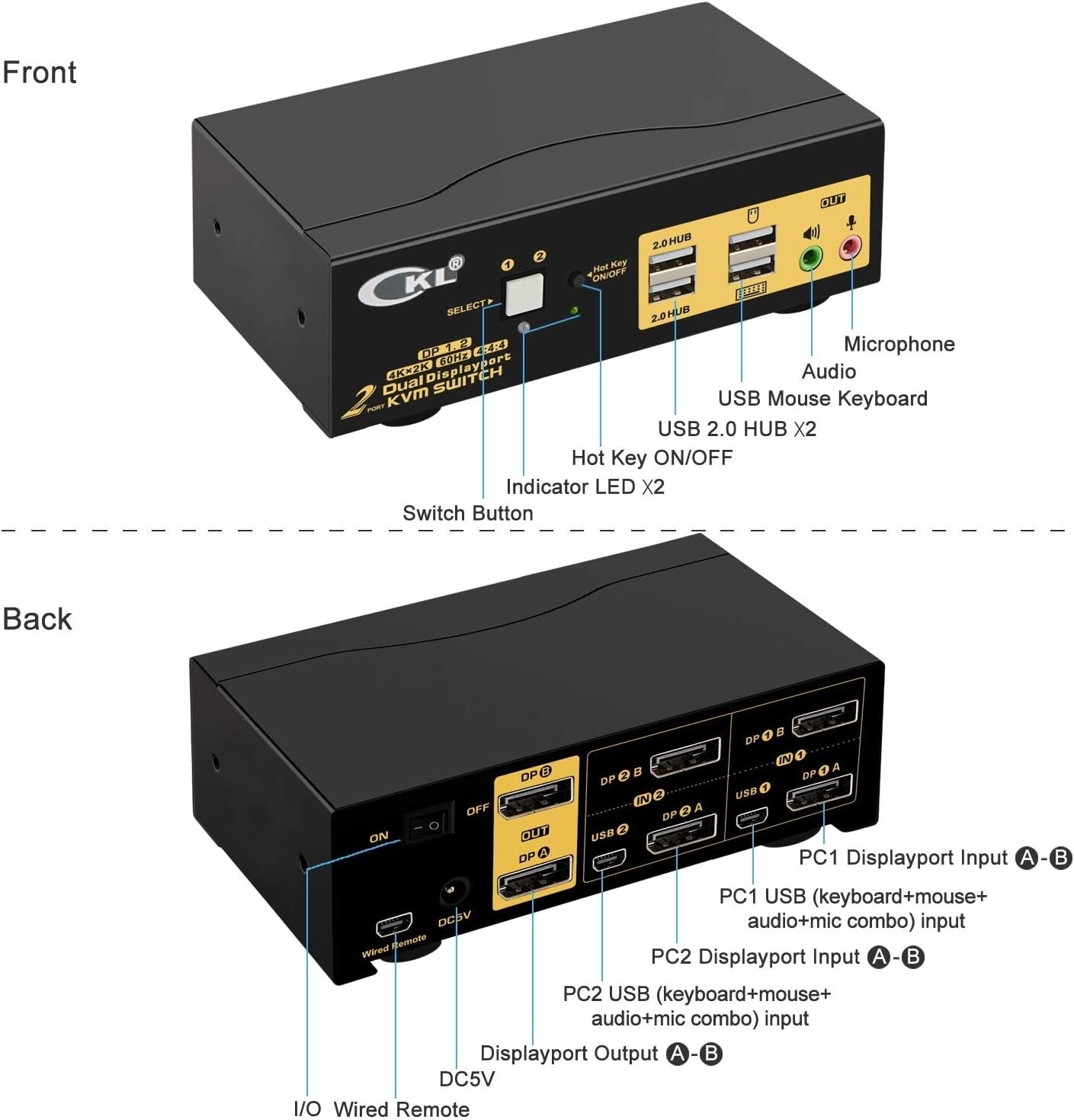

Installation Guide (incorrect connection will cause malfunction):

PC 1 : Connect 2 DP outputs on PC 1 to DP IN 1A & 1B on the kvm, and USB + Audio combo to USB 1.
PC 2 : Connect 2 DP outputs on PC 2 to DP IN 2A & 2B on the kvm, and USB + Audio combo to USB 2.
Monitors: Connect Monitor A to DP A Out, Monitor B to DP B Out.
Wired Keyboard & Mouse: connect Keyboard to USB keyboard port, mouse to USB mouse port
Wireless Keyboard and Mouse: Connect the wireless dongle into USB keyboard port
Power Adapter: connect the power adapter to DC input.
Audio Devices: Connect speaker or microphone output on KVM (optional), make sure the audio jacks are also plugged into your computers if needed.
Power on the KVM and computers.

Special Notes:

USB connection is to ensure keyboard and mouse work properly.
What if my computer or laptop only has one Display Port output? In this case, you will need reliable adapters or docking station for non-DP outputs. Please be aware of this before ordering!
Some gaming, programing or mechanical keyboard and mouse may not work well from the dedicated USB keyboard and mouse ports, if so, connect them to standard USB2.0 ports. or turn off the hotkey then the USB keyboard and mouse port will also become standard USB 2.0 HUB port This option does not support hotkeys. but you can use the wired remoter to switch between devices easily.

Support 4096*2160@60Hz with DP1.2 Protocol, not compatible with DP1.4 version, 100Hz, 120Hz and 144Hz.

Box Content

1x 2 Port Dual DP KVM switch + 4x DP to DP cables (4.92 ft) + 2x USB + Audio Combo cables + 1x Wired Remoter with cable + 1x DC 5V 2A power adapter + 1x User manual

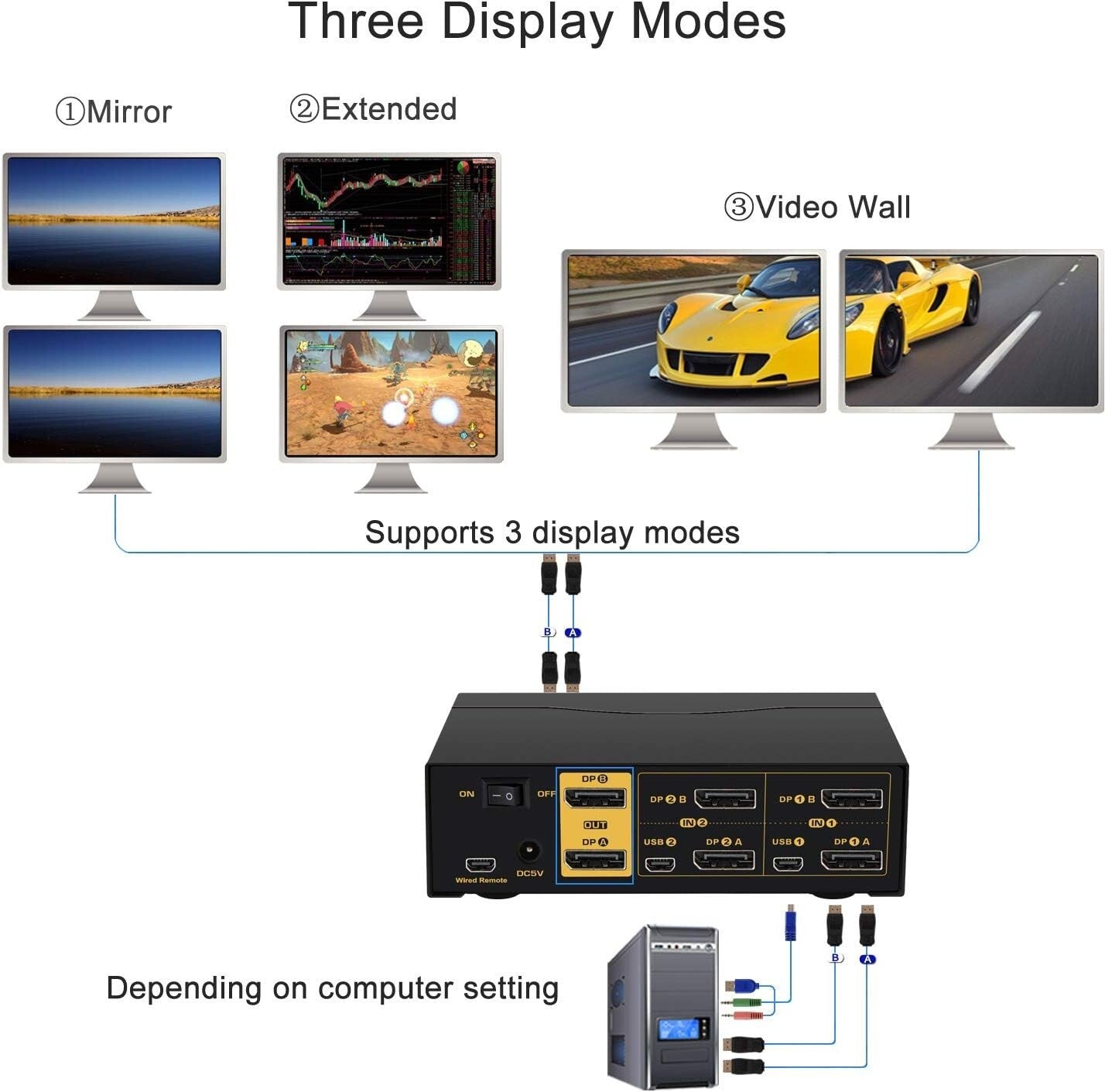

3 Display Modes Extended Mode Duplicated Mode (Mirrored) Spliced Mode	5 Switching Modes 1. Keyboard Hotkey 2. Mouse Click 3. Manual Button 4. Wired Remote 5. Auto Scan with adjustable interval	Cross Support Multi Operation Systems Cross support multi platforms including Windows 10/7/2000/XP/Vista, Linux, Mac and More.
