ACEIRMC

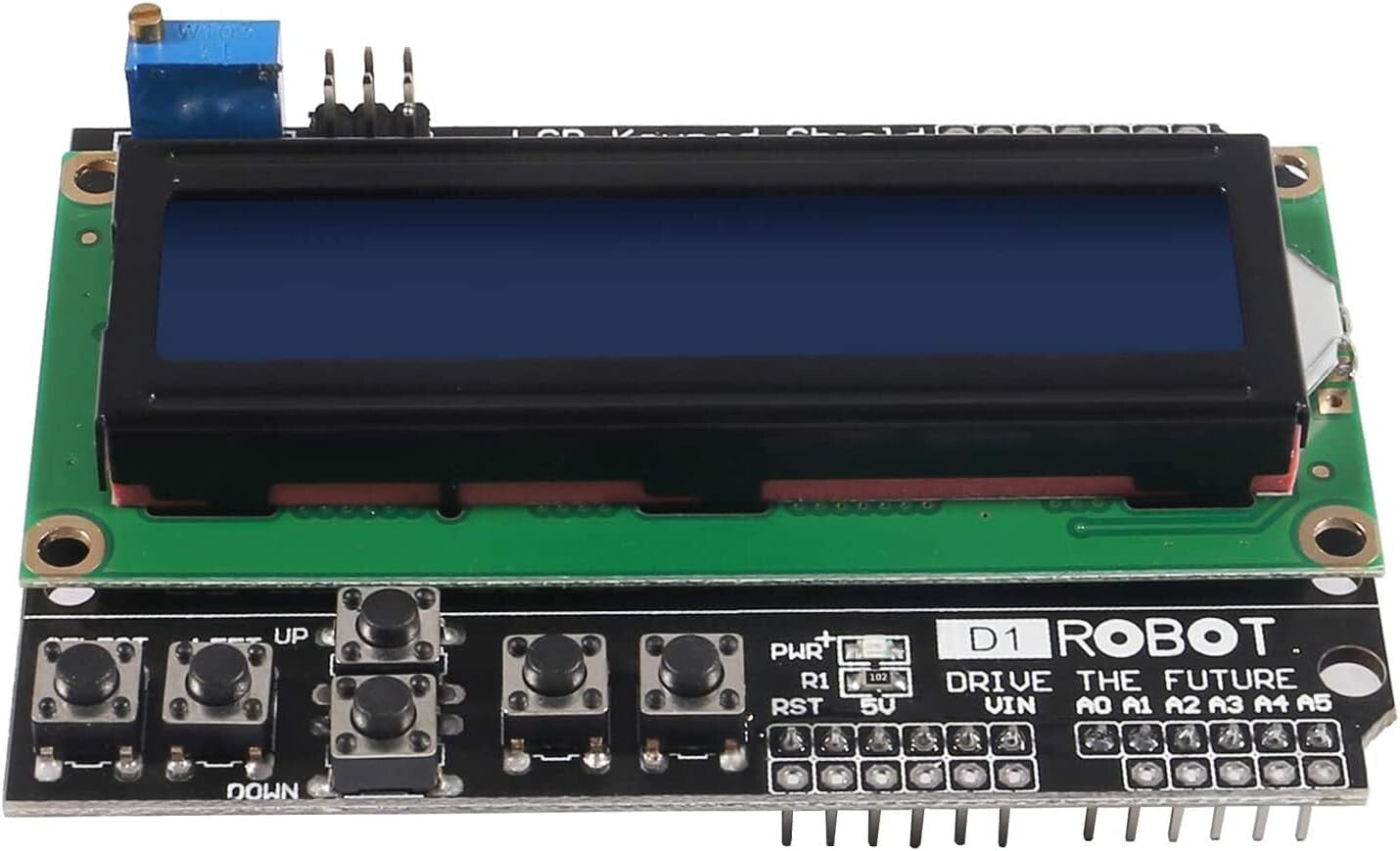

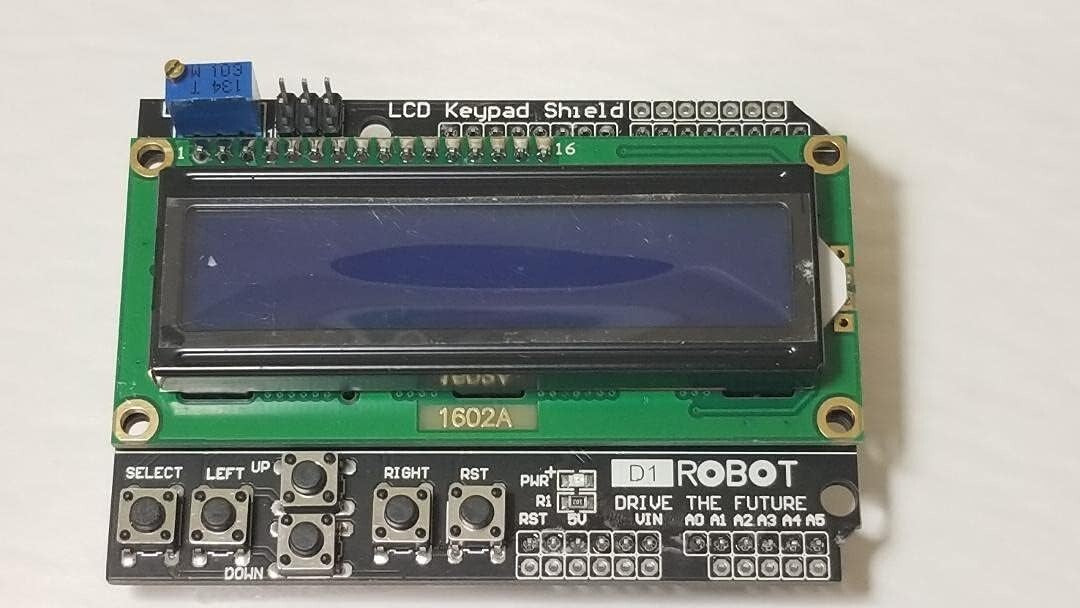

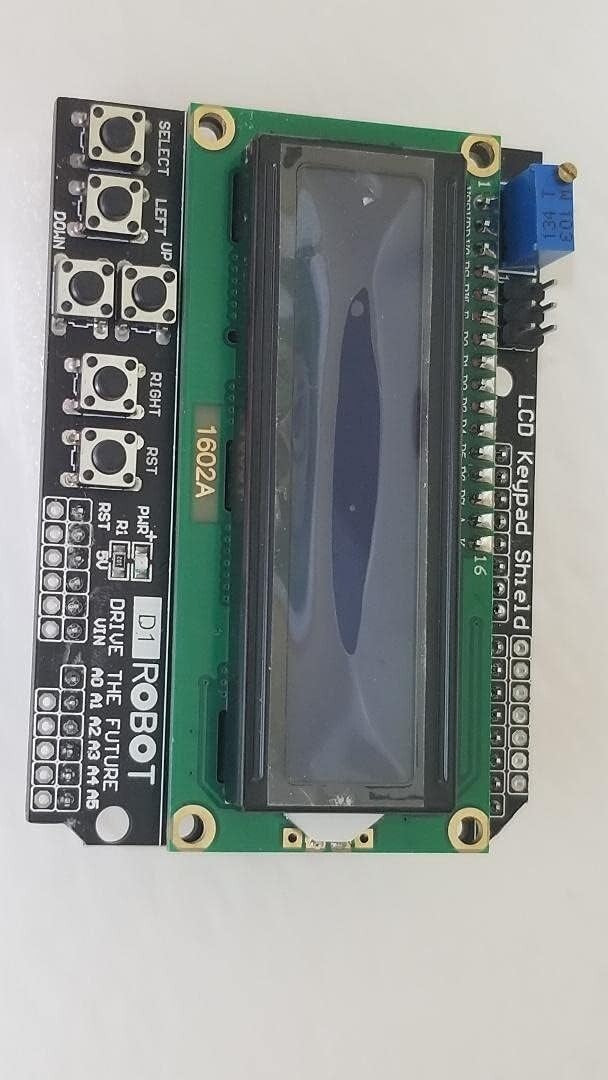

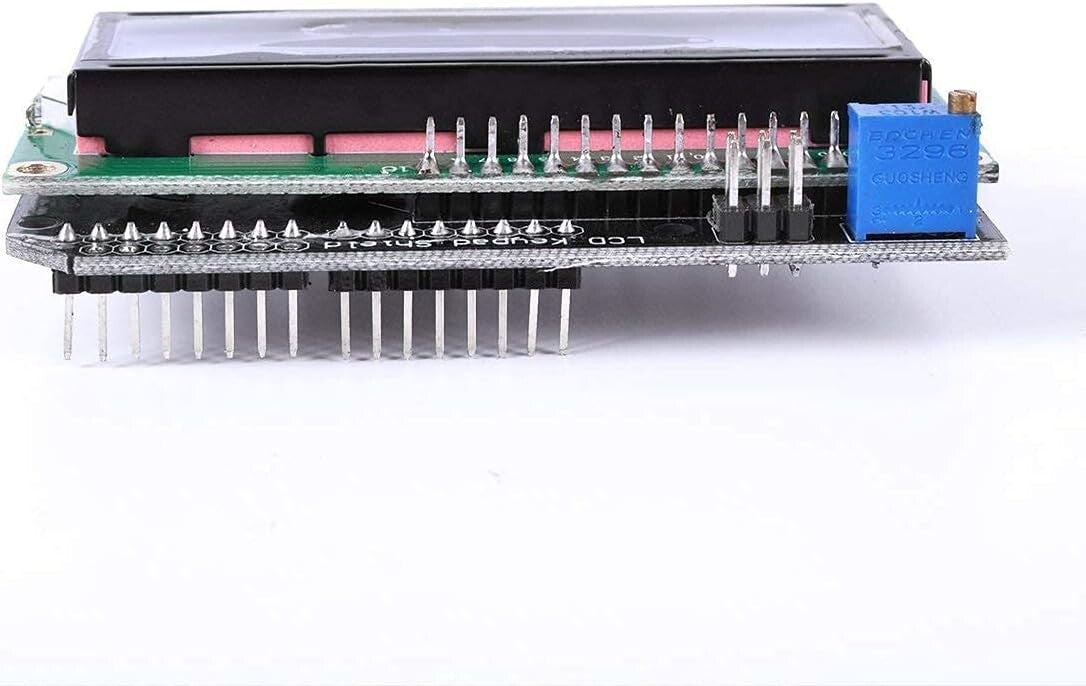

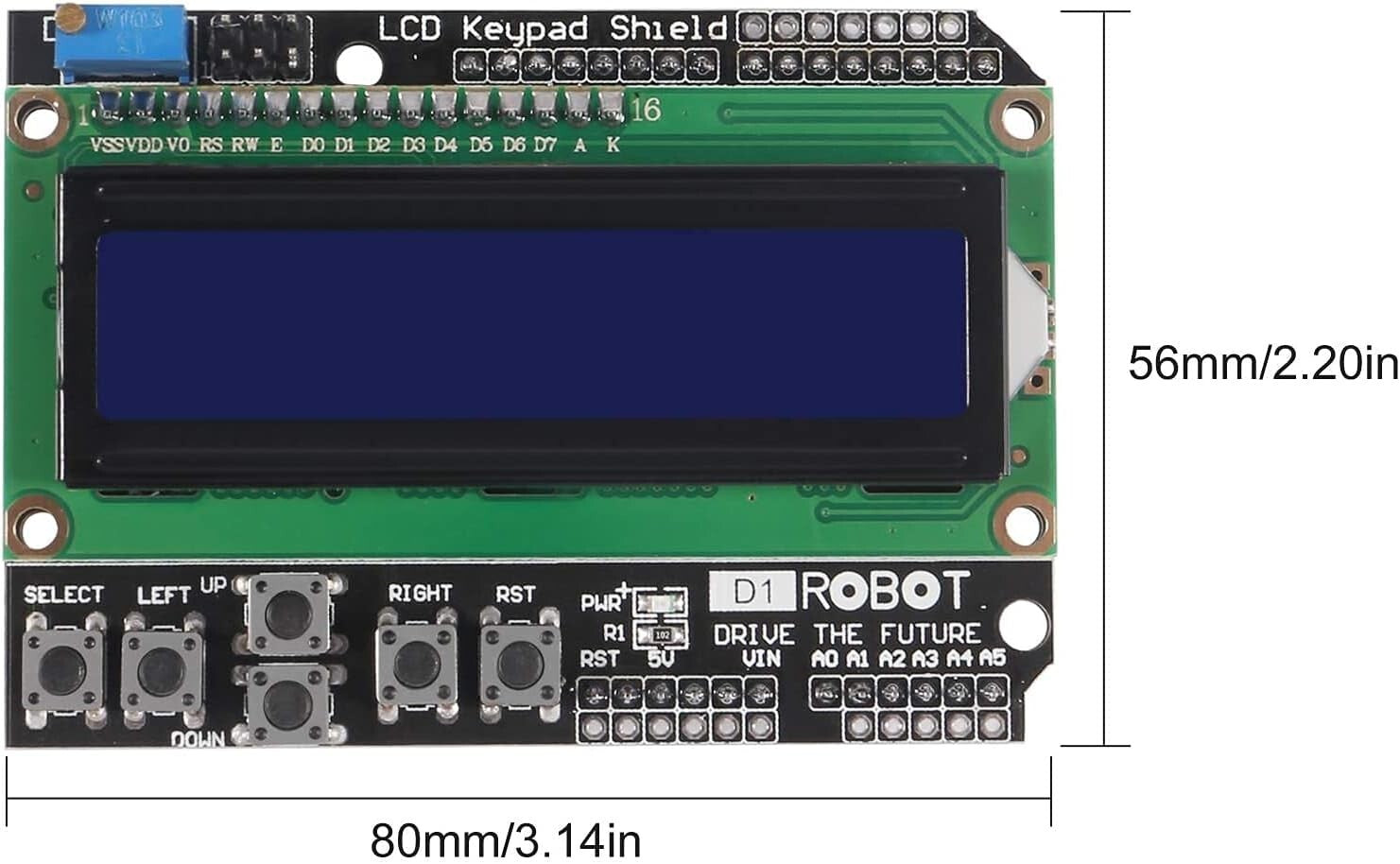

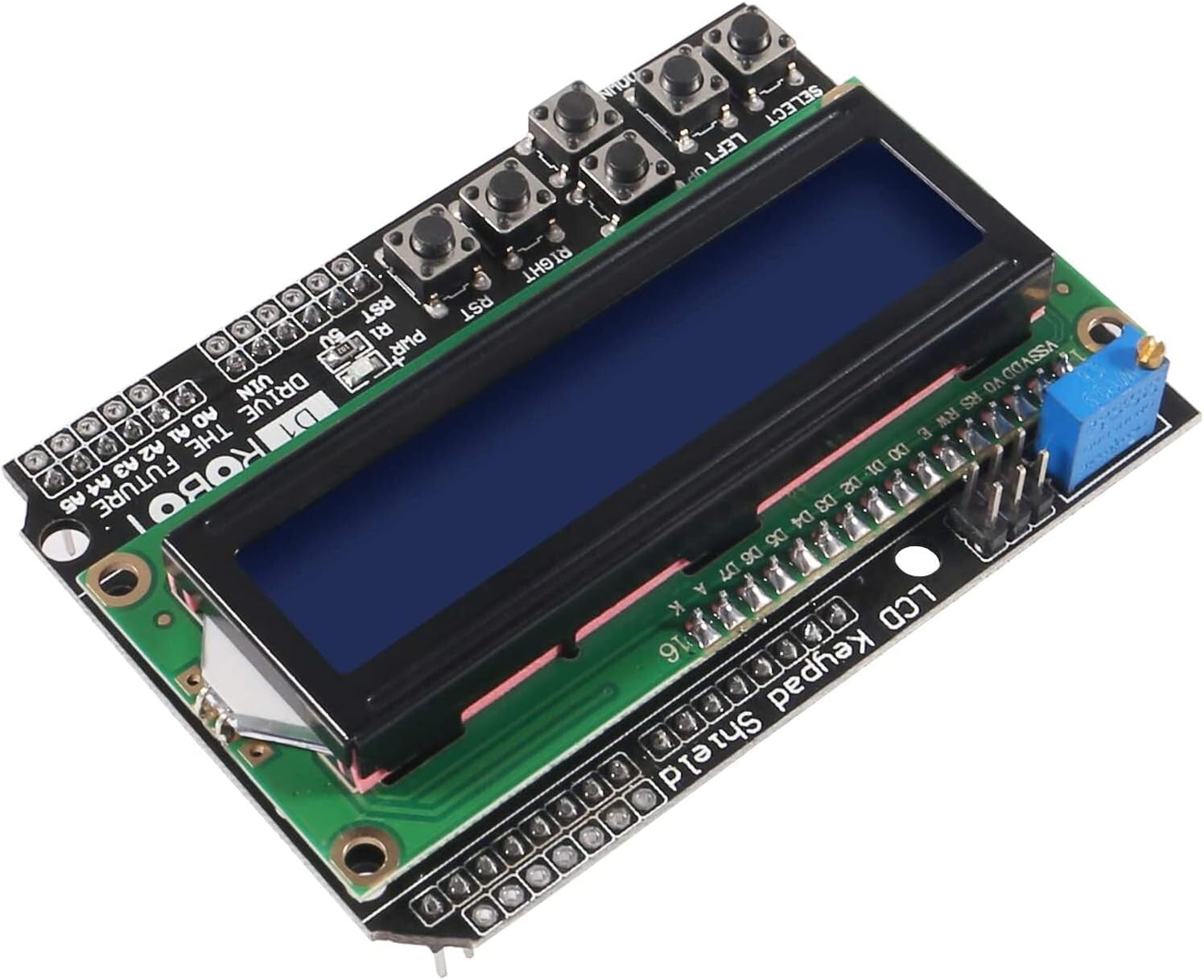

1602 1602A Keypad Shield Expansion Shield Board Blue Backlight 45V
1602 1602A Keypad Shield Expansion Shield Board Blue Backlight 45V
Regular price
$9.95 USD
Regular price
$0.00 USD
Sale price
$9.95 USD
Quantity
Couldn't load pickup availability
ACEIRMC Keypad Shield for 1602 1602A LCD Expansion Shield Board Blue Backlight 4.5-5.5V for Arduino for UNO R3 MEGA2560 Nano Due for Duemilanove Robot
- For 1602 1602A LCD Shield Module Display V3 Arduino UNO R3 MEGA2560 Nano DUE
- This is a 16x2 LCD Keypad module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
- Blue Backlight with white words, adjustable backlighting
- 4 Bit LCD Library,V3 design, pins out for easy connecting
- 1602 1602A LCD Keypad Shield Expansion Shield Board Blue Backlight 4.5-5.5V for Arduino Duemilanove Robot
- Based on HD44780 LCD chip and adopts standard 16-pin interface.
- Consists of several 5X7 or 5X11 other dot matrix character bits. The interval exists between each line or each bit to create a good character spacing and row spacing effect.
- A specially designed dot matrix LCD module which is used for displaying letters, numbers and symbols etc.
- Consists of several 5X7 or 5X11 other dot matrix character bits.The interval exists between each line or each bit to creat a good character spacing and row spacing effect.
- Based on HD44780 LCD chip and adopts standard 16-pin interface.

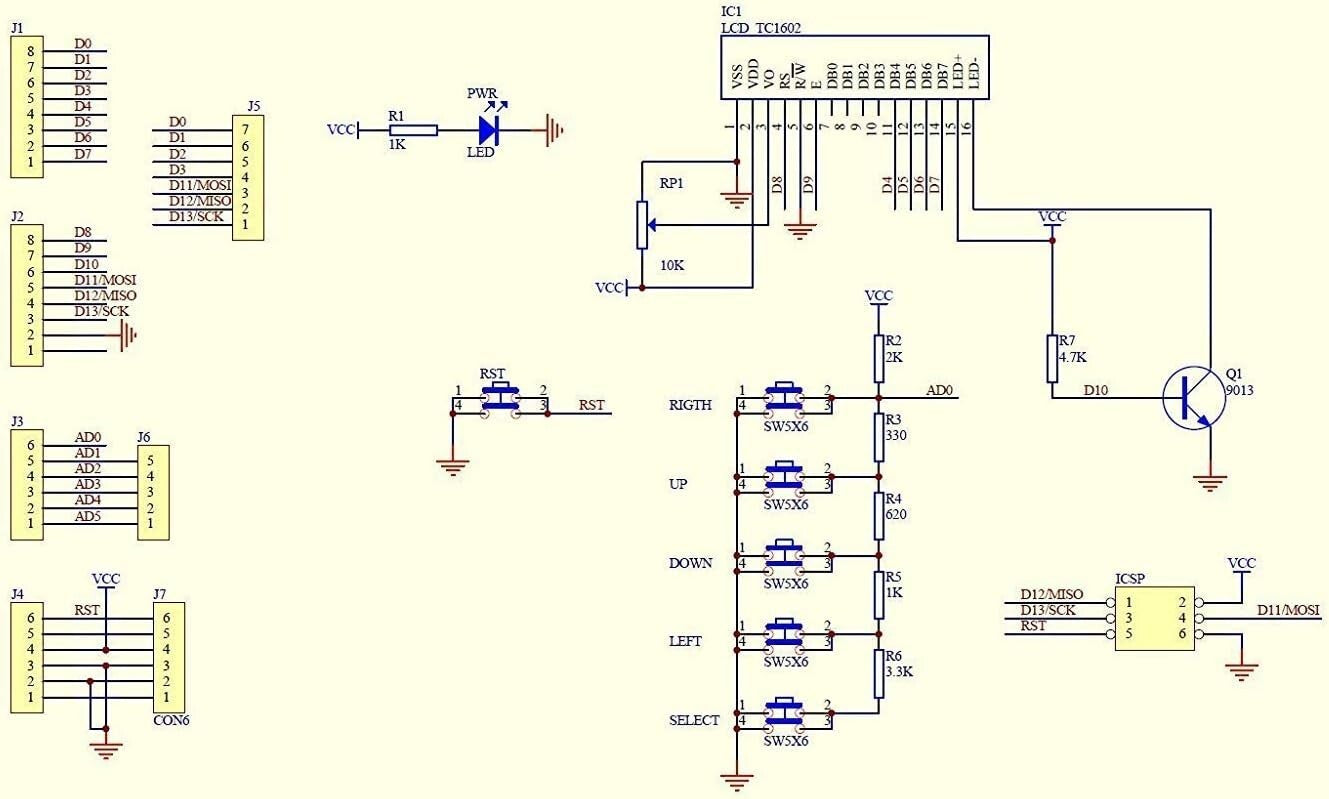

- It has a contrast adjustment knob, backlight selection switch, but also with four directional buttons, a selection button And a reset button.
- This 1602 LCD expansion board in the true sense of the circuit will be simplified, directly to the board inserted Arduino Duemilanove controller can be.
