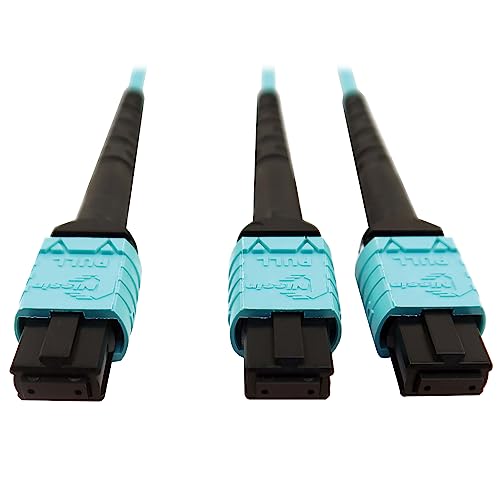

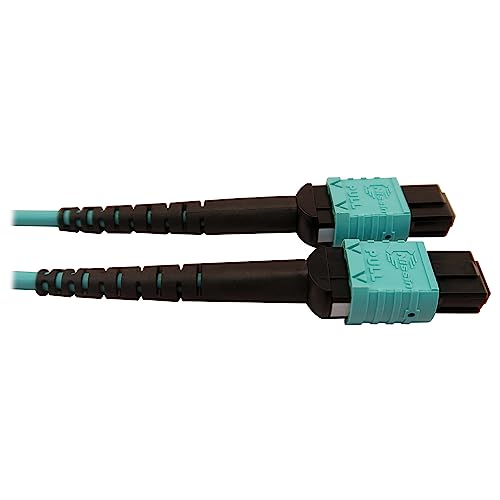

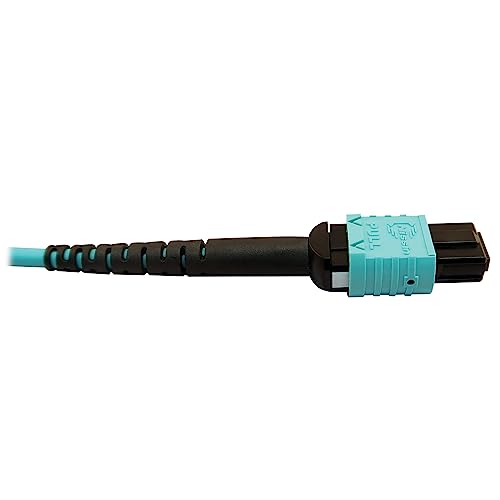

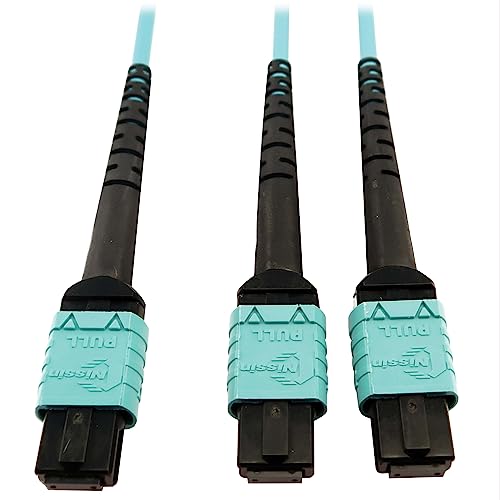

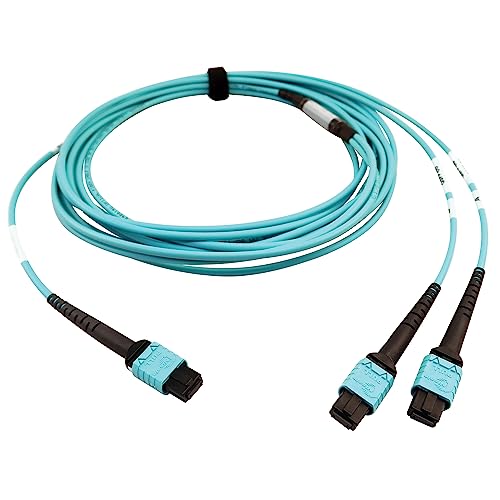

Tripp Lite 400GB Ethernet Fiber Optic Cable, Multimode 50/125 OM4 Cable, Plenum Rated, 24F MTP/MPO-PC to 2X 12F MTP/MPO-PC (F/F), 5m, Aqua (N846D-05M-24BAQ)
Tripp Lite 400GB Ethernet Fiber Optic Cable, Multimode 50/125 OM4 Cable, Plenum Rated, 24F MTP/MPO-PC to 2X 12F MTP/MPO-PC (F/F), 5m, Aqua (N846D-05M-24BAQ)
Brand: Tripp Lite
Features:
- HIGH-SPEED FIBER OPTIC CABLE: Transfer data at 400 GB speeds and support the bandwith for next-gen cloud services, hyperscale data centers and telecom carriers. Length: 5 m. / Color: Aqua / Connectors: 24-Fiber MTP/MPO-PC to Two 12-Fiber MTP/MPO-PC (F/F)
- 24 and 12 FIBER MTP/MPO PC CONNECTORS: Multimode 50/125 OM4 cable is an ideal solution for 400G Ethernet applications up to 100 meters at 850nm. Compatible with latest 400G QSFP-DD transceivers, MPO connectors have a wide parallel optical interface.
- RUGGED BUILD: Constructed with a 3-millimeter ruggedized plenum-rated jacket with low smoke & flame characteristics for use in ceilings, walls and ducts. Ideal for 400G Ethernet has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.
- AQUA FIBER OPTIC CABLE: 400Gbe Ethernet cable with aqua jacket prevents getting lost in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. Easily connect 400G Cisco, Arista, Juniper and other network switches through air ducts & drop ceilings
PartNumber: N846D-05M-24BAQ
Release Date: 22-10-2020
Details: 400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. 24- and 12-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers The MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors, but much denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM4-rated cable has an aqua jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.
UPC: 037332258434
EAN: 0037332258434
Model: N846D-05M-24BAQ
Binding: Misc.
Item Condition: New
