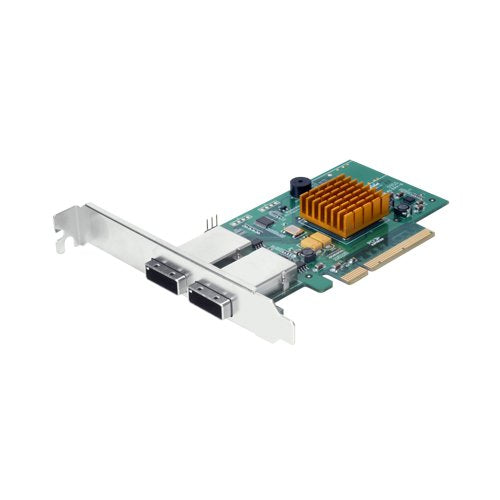

San Digital 2-Port Mini-SAS PCI-E PCIe x8 2.0 SAS/SATA 6G RAID Controller (RR2722)

Brand: Sans Digital

Features:

• PCI-Express 2.0 x 8 support (backwards-compatible with PCI-Express 1.0).
• Serial ATA III (SATA 6.0Gbps) compliant along with speed negotiation Serial ATA II (3Gbps) and Serial ATA I (1.5Gbps).
• Serial Attached SCSI (SAS) 6G supported. Backward compatibile with SAS 3G .
• Supports RAID 0, 1, 5, 10 and JBOD.
• Mount/Dismount RAID array.
• Hot key (ctrl-h) boot-up RAID manager via BIOS.
• Verify RAID array feature for bad sectors and parity check.
• Task scheduler.

PartNumber: RR2722

Details: The RocketRAID 2722 is designed to optimize read/write performance and redundancy with RAID 0, 1, 5, 10 and JBOD when paired with mini-SAS storage enclosures. Supported by PC, Mac and Linux operating systems, the RocketRAID 2722 easily integrates to any systems with excellent read/write performance along with RAID data protection. The RocketRAID is fully compatible with Sans Digital TowerRAID series Mini-SAS storage device. Supported latest SAS 6G and SATA 6G hard drives. VMware ESX / ESXi 4.0 supported for use in virtualization environments.Hardware SpecificationPCI-Express 2.0 x 8 support (backwards-compatible with PCI-Express 1.0). Serial ATA III (SATA 6.0Gbps) compliant along with speed negotiation Serial ATA II (3Gbps) and Serial ATA I (1.5Gbps). Serial Attached SCSI (SAS) 6G supported. Backward compatible with SAS 3G Supports RAID 0, 1, 5, 10 and JBOD.Maintenance and Management Settings RAID array roaming.Mount/Dismount RAID array.Hot key (ctrl-h) boot-up RAID manager via BIOS.Verify RAID array feature for bad sectors and parity check.Task scheduler.Automatic RAID rebuild.Automatic drive (insert / removal) detection.Hot spare disk.Staggered drive spin-up.Rebuild priority (low - highest).Spin-down idle mode.Hot-swap and hot-plug.Bad sector repair and re-mapping to reduce dropped drives.Multiple RAID array.Multiple logical drive.64bit LBA support greater than 2TB per volume.Online capacity expansion (OCE) and online RAID level migration (ORLM).Monitoring Tools SMTP for email notification.Alarm / Buzzer alerts for drive failure.SHI (Storage Health Inspector – Drive analysis from S.M.A.R.T).Event log.Management ToolsCommand line interface (CLI).Web browser-base RAID management software.API support.

UPC: 739410733146

EAN: 0739410733146

Model: RR2722

Binding: Personal Computers

Item Condition: New
