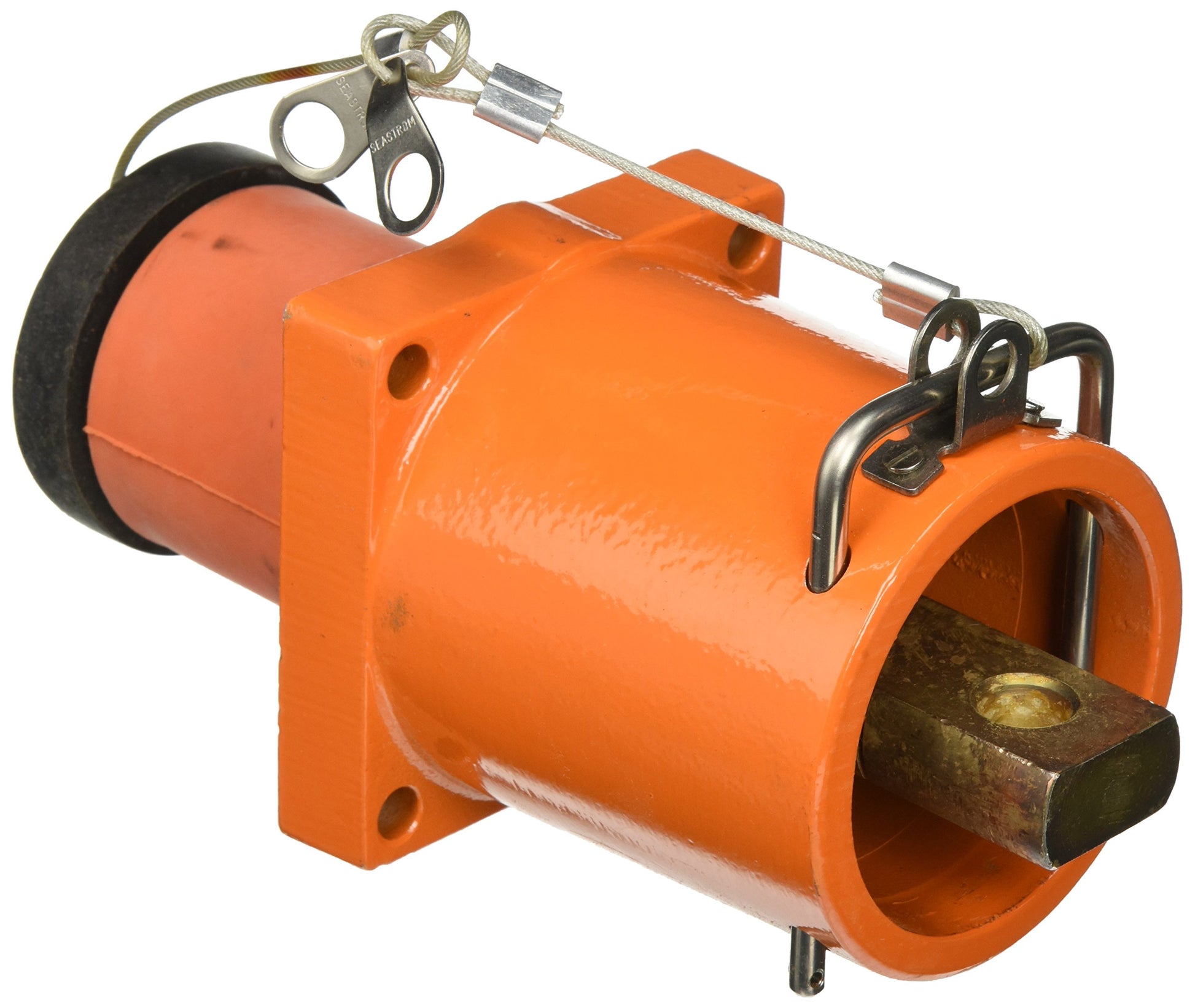

Leviton 49FR2-CO OR HIGH AMP CPLT FEM REC DBL HOLE

Brand: Leviton

Color: Image

Features:

• OR HIGH AMP CPLT FEM REC DBL HOLE
• Product Type: PANEL MOUNT RECEPTACLE

PartNumber: 49FR2-CO

Details: Product Description FEMALE TYPE; 3.75 INCH DIA X 8.97 INCH L SIZE; 2-HOLE BUS BAR CONNECTION TYPE; 313 TO 777 MCM CABLE SIZE; UL (CANADA AND US) APPROVAL; INDUSTRIAL, OUTDOOR APPLICATION; 1000 V VOLTAGE RATING; PANEL MOUNTING; VULCANIZED PROCESS; NEMA 3R ENCLOSURE From the Manufacturer Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels). Rhino-Hide 49 Series Single Pole female Receptacle (Color Coded Metal Housing, Contact, and Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000-Volt, 1135 Amp Max. - Orange.

UPC: 078477344064

EAN: 0078477344064

Model: 49FR2-CO

Binding: Tools & Home Improvement

Item Condition: New
