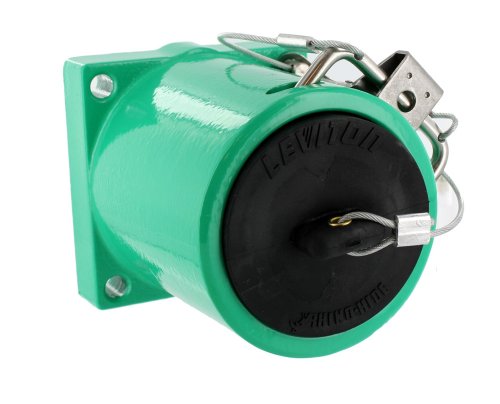

Leviton 49FR1-XG GN HIGH AMP CPLT FEM REC 1HOLE REDESIGN0

Brand: Leviton

Color: Image

Features:

• GN HIGH AMP CPLT FEM REC 1HOLE REDESIGN0
• Product Type: PANEL MOUNT RECEPTACLE

PartNumber: 49FR1-XG

Details: Product Description 45 DEGREE FEMALE TYPE; 1-HOLE BUS BAR CONNECTION TYPE; 313 TO 777 MCM CABLE SIZE; UL APPROVAL; INDUSTRIAL, OUTDOOR APPLICATION; 1000 V VOLTAGE RATING; PANEL MOUNTING; VULCANIZED PROCESS; NEMA 3R ENCLOSURE; 1135 AMPERE CURRENT RATING; 1 POLE(S) From the Manufacturer Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels). Rhino-Hide 49 Series Single Pole female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin and Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000-Volt, 1135 Amp Max. - Green.

UPC: 078477387375

EAN: 0078477387375

Model: 49FR1-XG

Binding: Tools & Home Improvement

Item Condition: New
